Couple hi-res images of 16902A mainboard

I just recently added another HP/Agilent logic analyzer to my collection. This time it is the 16902A. I needed to remove the CPU tray to replace the IDE HDD with a SATA SSD. As a result, I figured I’d take couple images with my copy stand and share them. Hope you enjoy!

Full resolution is here.

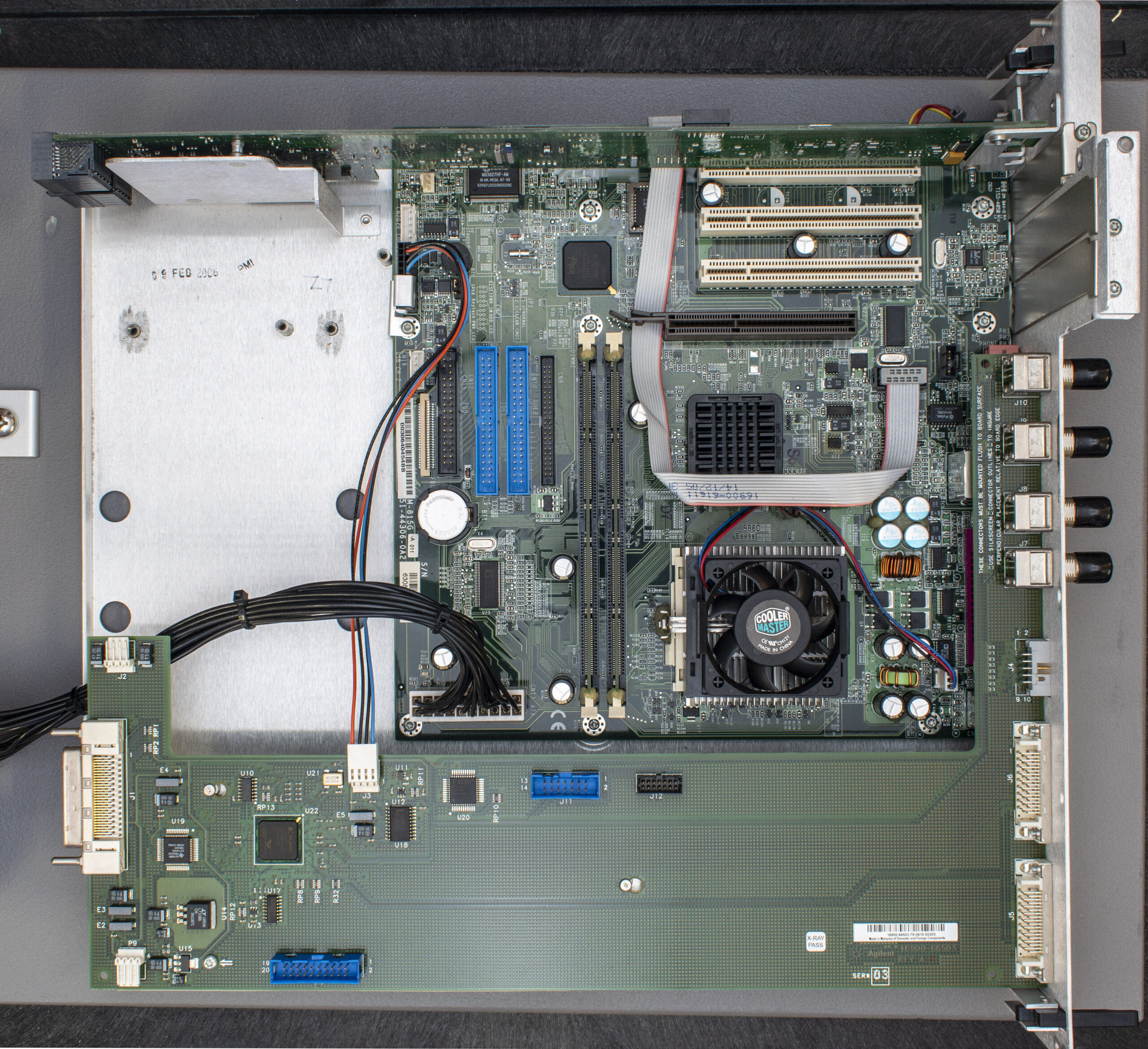

HP Agilent 16902A mainboard

Full resolution for the above image is here.
